Anteo / Tyres / MOVER-D

ON-OFF ROAD

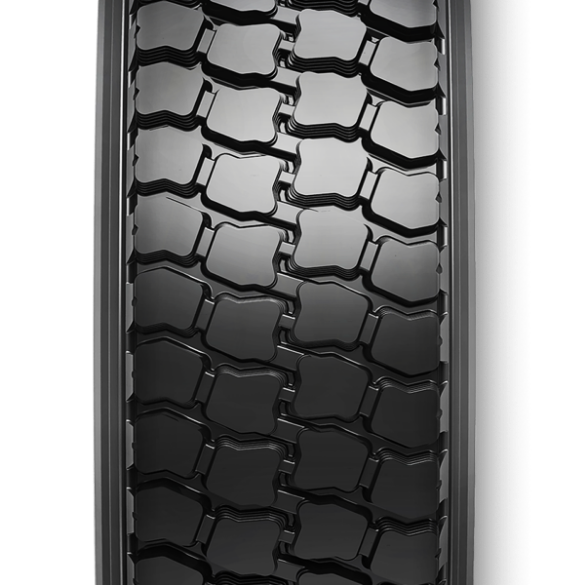

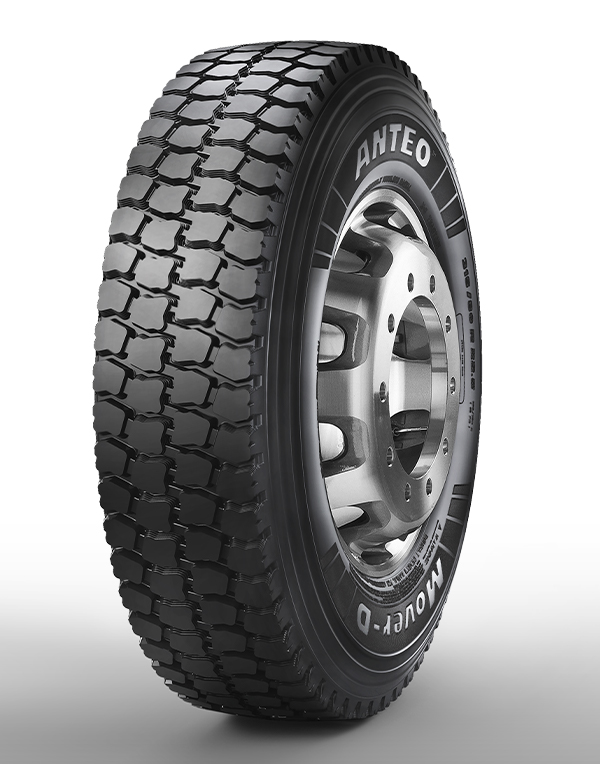

MOVER-D

MOVER-D

ice.png m_s.png
Designed for use on drive axles, it meets the requirements on asphalted road driving as well as on rough, tough surface conditions. It safeguards robustness and tyre integrity.
  • Tear resistance
    Optimized groove geometry grants an excellent tear resistance and low noise generation
  • Traction on-road and off-road
    Innovative tread pattern design maximizes traction in both on-road and off-road conditions
  • Extended tyre life
    Adaptable Tread Pattern Technology: the variable tread geometry during tyre life guarantees robustness and extended tyre life

SIZE RANGE

SIZE LOAD INDEX/
SPEED CODE		 SECTION
WIDTH
(MM)		 DIAMETER
(MM)		 STATICAL
RADIUS
(MM)		 ROLLING CIRC.
(MM)		 RIMS MARKING REGULATION EU 2020/740 - LABEL PARAMETERS
= Fuel efficiency class = Wet grip class = External rolling noise class = Snow grip / 3PMSF marking
13 R 22.5 156/150 K (154/150 L) 316 1121 519 3419 9.00-9.75 M+S D A B 74dB
315/80 R 22.5 156/150 K 316 1080 502 3294 9.00-9.75 M+S D A B 74dB
SIZE 13 R 22.5 315/80 R 22.5
LOAD INDEX/
SPEED CODE		 156/150 K (154/150 L) 156/150 K
SECTION
WIDTH
(MM)		 316 316
DIAMETER
(MM)		 1121 1080
STATICAL
RADIUS
(MM)		 519 502
ROLLING CIRC.
(MM)		 3419 3294
RIMS 9.00-9.75 9.00-9.75
MARKING M+S M+S
REGULATION EU 2020/740 - LABEL PARAMETERS = Fuel efficiency class D D
= Wet grip class A A
= External rolling noise class B 74dB B 74dB
= Snow grip / 3PMSF marking
   = Fuel efficiency class
   = Wet grip class
   = External rolling noise class
   = Snow grip / 3PMSF marking
Rim underlined is measuring rim

RECOMMENDED FITMENT

betoniera_anteriore_pallino_e_posteriore.png ribaltabile_anteriore_pallino_e_posteriore.png
   Also for use on front axles (all wheel drive vehicles)

DOWNLOAD

BROCHURE
3.69 Mb

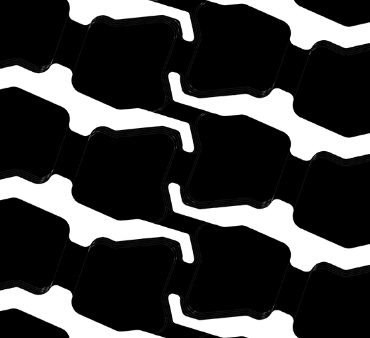

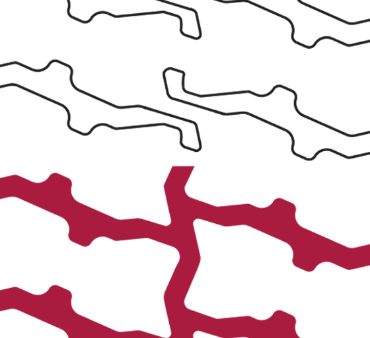

REGROOVING

MOVER-D

P. MAX = 2mm — W.MAX = 8mm

W.MAX: Maximum regrooving width
P.MAX: Maximum regrooving depth

NEW TREAD
MOVER-D
WORN TREAD
MOVER-D
REGROOVED
